LMX W

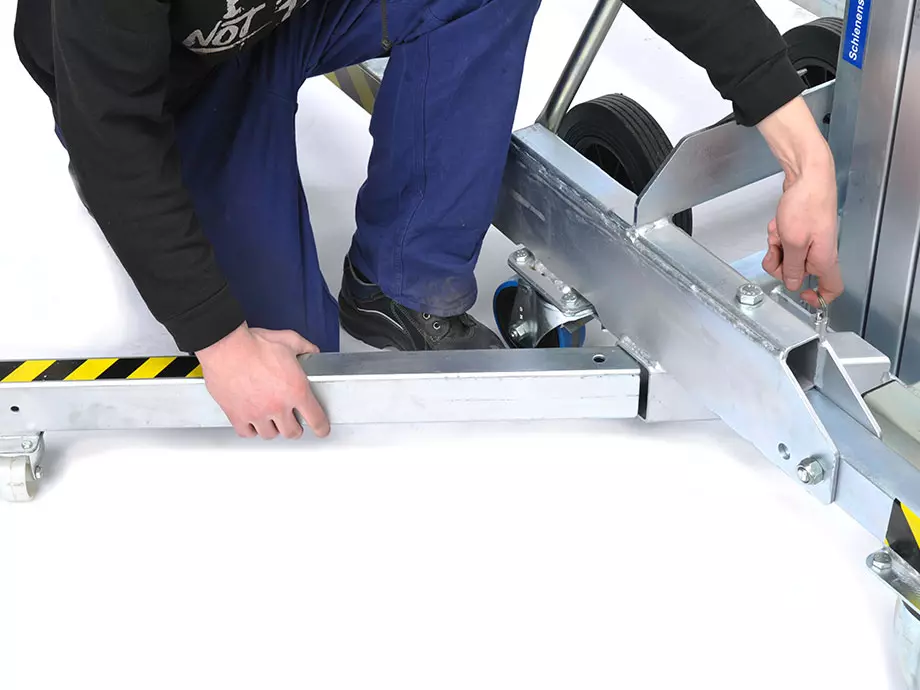

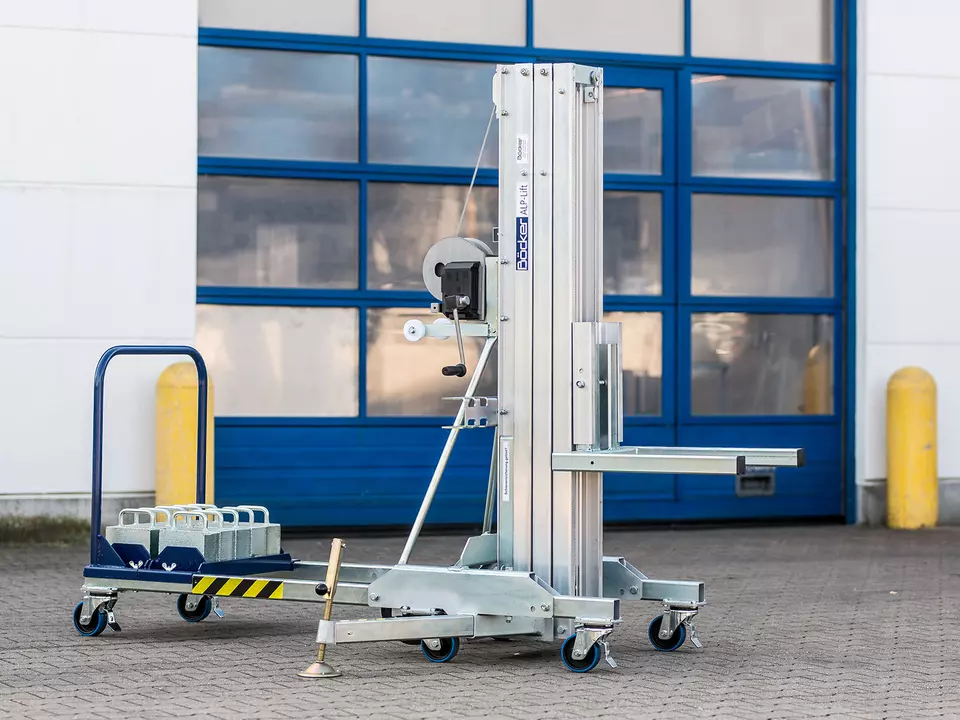

The LMX W – the special model with alternating chassis
Particularly for assembly works directly on the wall or working in front of barriers Böcker offers its well proven ALP-Lifts also as type LMX W.
| Model | LMX 500 W |
| Load capacity (kg) | 500 |
| Lifting height max. load fork top (mm) | 4,800 |
| Lifting height max. load fork bottom (mm) | 4,350 |
| Height front parts (mm) | 240 |
| Chassis width (mm) | 790 |
| Chassis length (mm) | 1,910 |
| Width with side outriggers (mm) | 1,920 |
| Transport width (mm) | 760 |
| Transport length (mm) | 950 |
| Dead weight without side outriggers and with permanently mounted attachments (kg) | 253 |
| Dead weight with side outriggers and fixed attachments (kg) | 266 |
| Weight of ballast weights (kg) | 200 |
